logdiag

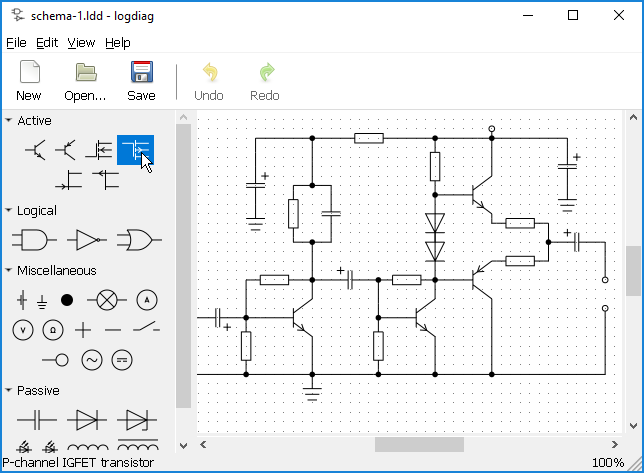

logdiag is a simple multiplatform schematic editor written in GTK+.

This software has never really been finished, and is no longer being worked on, although I strive to keep it building on Windows XP and elsewhere.

Packages

Regular releases are sporadic. git master should be stable enough. You can get a package with the latest development version from Archlinux’s AUR.

Windows installers can be downloaded from the Releases page on Gitea.

Requirements

Runtime dependencies: GTK+ >= 3.8, json-glib >= 0.10.4, lua >= 5.2
Build dependencies: CMake >= 3.10

Build from source on Unix-like systems

First check that you have all the required dependencies installed, including development packages, if your distribution provides them.

Reserve a directory for an out-of-source build:

$ mkdir build
$ cd build

Let CMake prepare the build. You may change the directory where you want the application to be installed. The default is /usr/local.

$ cmake .. -DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_PREFIX=/usr

Now you have two basic choices of installing the application:

1. Using make install:

   # make install

2. Using cpack:

   You have to choose a package format understood by your system package manager. CMake offers DEB and RPM.

   After cpack finishes making the package, install this file.

   $ cpack -G DEB
   # dpkg -i logdiag-version-system-arch.deb

Build from source on Windows

Note that using the current method we’re stuck with GTK+ 3.8.2, which works worse on Windows 10, but better on XP and under WINE.

First, install CMake and MinGW (mingw32-base-bin, mingw32-gettext-dev). Ensure they’re both in your system path. If you want to build an installation package, also install NSIS. If you want to build within a path containing spaces, fix your CMake’s FindPkgConfig.cmake module to say:

separate_arguments(_pkgconfig_invoke_result UNIX_COMMAND "${_pkgconfig_invoke_result}")

Run the following command in the directory with source files to automatically fetch and set up all dependencies:

> cmake -P Win32Depends.cmake

Note that on Windows XP, CMake will fail to download those files, even with updates. You will have to run the script externally.

Reserve a directory for an out-of-source build and let CMake prepare the build:

> mkdir build
> cd build
> cmake .. -G "MinGW Makefiles" -DCMAKE_BUILD_TYPE=Release

Now you can generate a package with CPack. You may choose between:

1. An NSIS-based installation package:

   > cpack -G NSIS

2. A portable ZIP package:

   > cpack -G ZIP

By default, that is if you specify no generator, both packages are built.

Cross-compilation for Windows

The procedure is almost exactly the same as before, including the requirements. Just install MinGW-w64 and let automation take care of the rest.

$ cmake -P Win32Depends.cmake
$ mkdir build
$ cd build
$ cmake -DCMAKE_TOOLCHAIN_FILE=../ToolchainCrossMinGWW64.cmake \
  -DCMAKE_BUILD_TYPE=Release ..
$ cpack

Alternatively, for an unnecessarily bloated MSYS2-based 64-bit build:

$ sh Win64Depends.sh
$ cmake -DCMAKE_TOOLCHAIN_FILE=ToolchainCrossWin64.cmake \
  -DCMAKE_BUILD_TYPE=Release -B build
$ cmake --build build — package

Contributing and Support

Use https://git.janouch.name/p/logdiag to report any bugs, request features, or submit pull requests. git send-email is tolerated. If you want to discuss the project, feel free to join me at ircs://irc.janouch.name, channel #dev.

Bitcoin donations are accepted at: 12r5uEWEgcHC46xd64tt3hHt9EUvYYDHe9

License

This software is released under the terms of the 0BSD license, the text of which is included within the package along with the list of authors.
