Solvespace models

This is a collection of my custom-made 3D models, with some commentary.

Bathtub strainer

The first thing I’ve ever modelled for printing, hence the simple geometry.

Cable hooks

To be glued to a desk using double-sided adhesive tape. Prone to delaminating under load when the printer is badly tuned.

Geiger stick

For Huahe M4011 and a specific diameter of aluminium pipe. Use at least three perimeters for the handle.

Book scanning stand

The pitch of 7 cm fits Samsung Galaxy Note 20 Ultra. Not as useful as expected, however the idea of using aluminium pipes has turned out to be a good one.

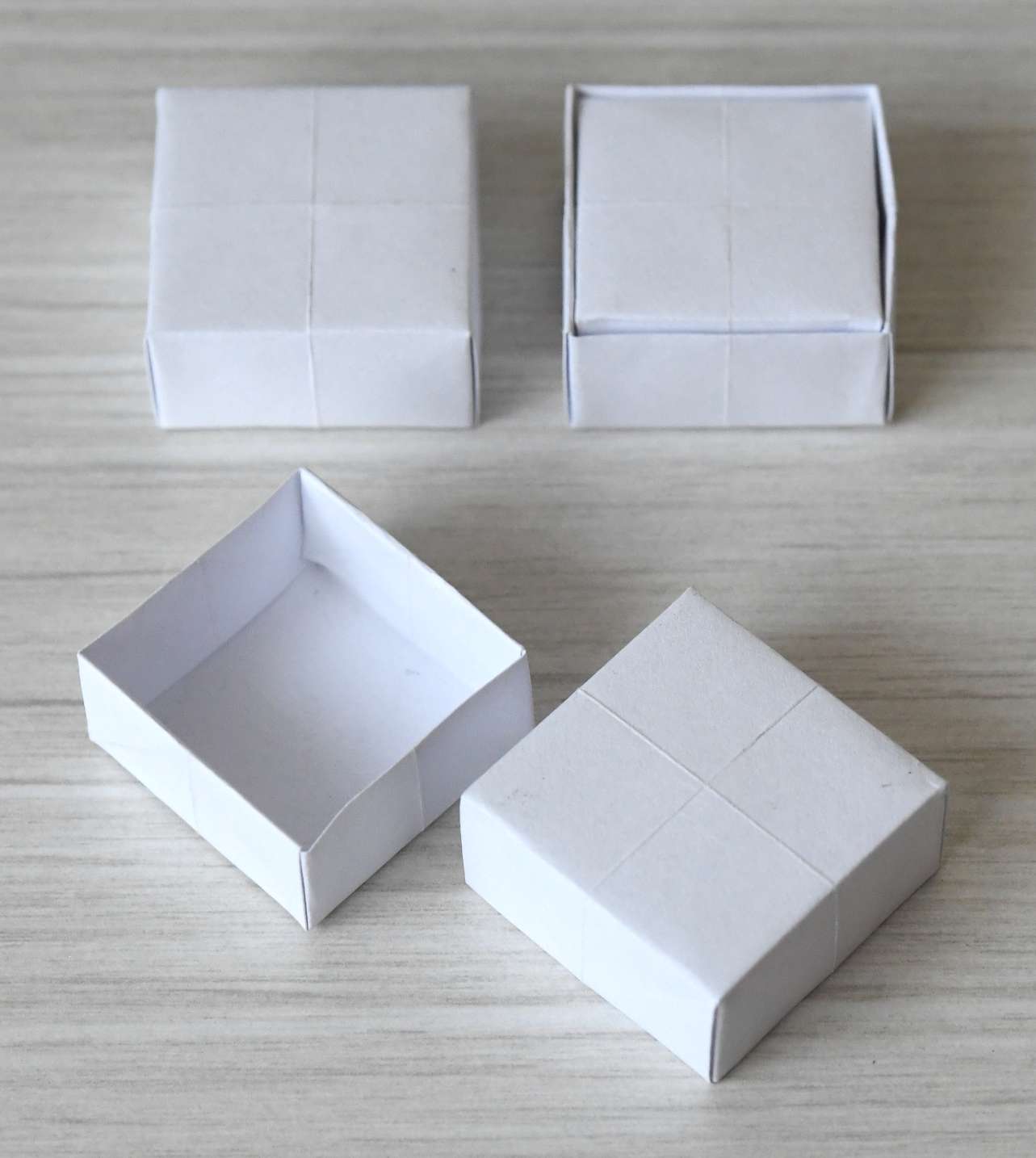

Paper boxes

These are actually 2D models for making closable little containers out of folded-up paper and a few drops of glue. It takes a lot of time to make these, so not recommended.

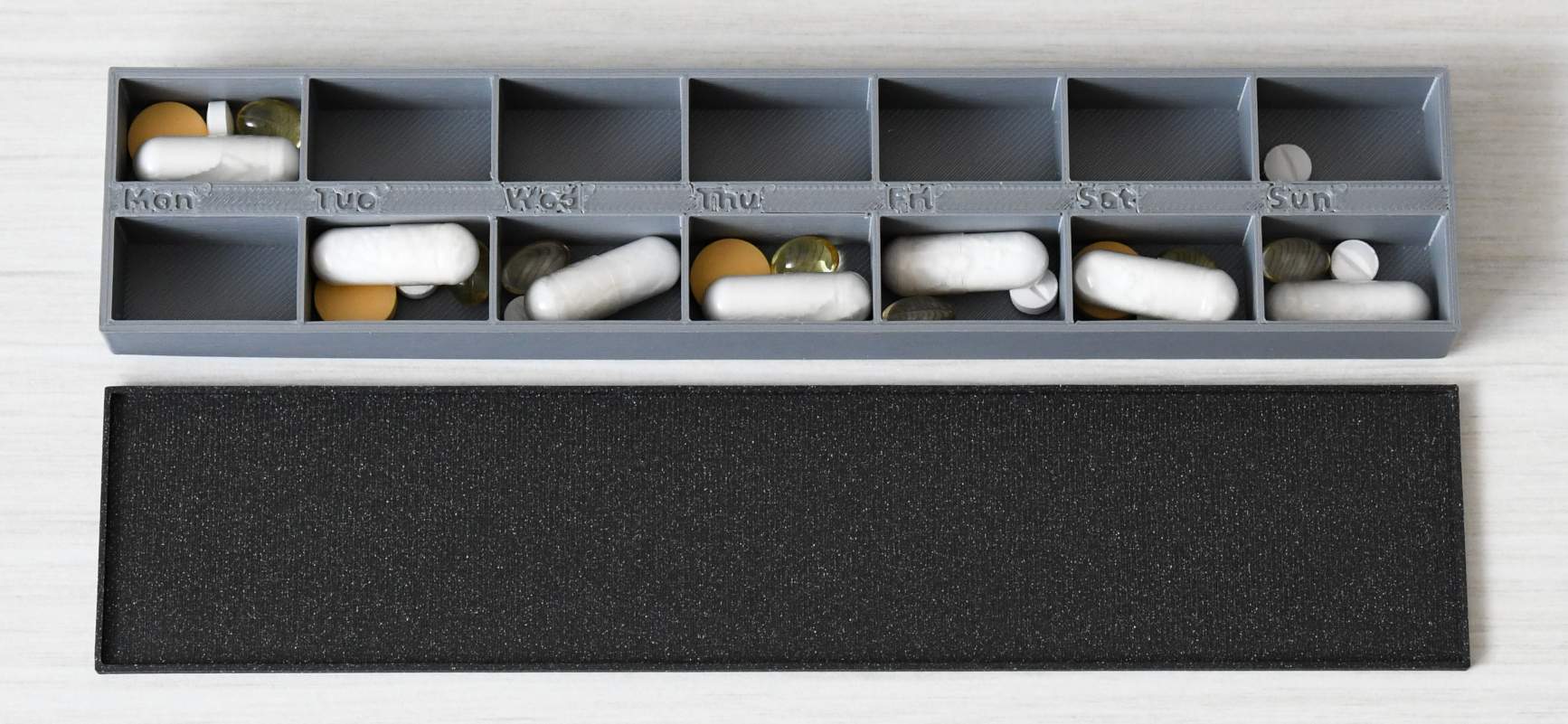

Pill container

This is not a particularly good design, and the tolerances are somehow off, so I failed to have it work after reprinting on a different machine. Large pills can be very difficult to extract.
