Solvespace models

This is a collection of my custom-made 3D models intended for 3D printing, with some commentary. Solvespace 3.0 or newer is required.

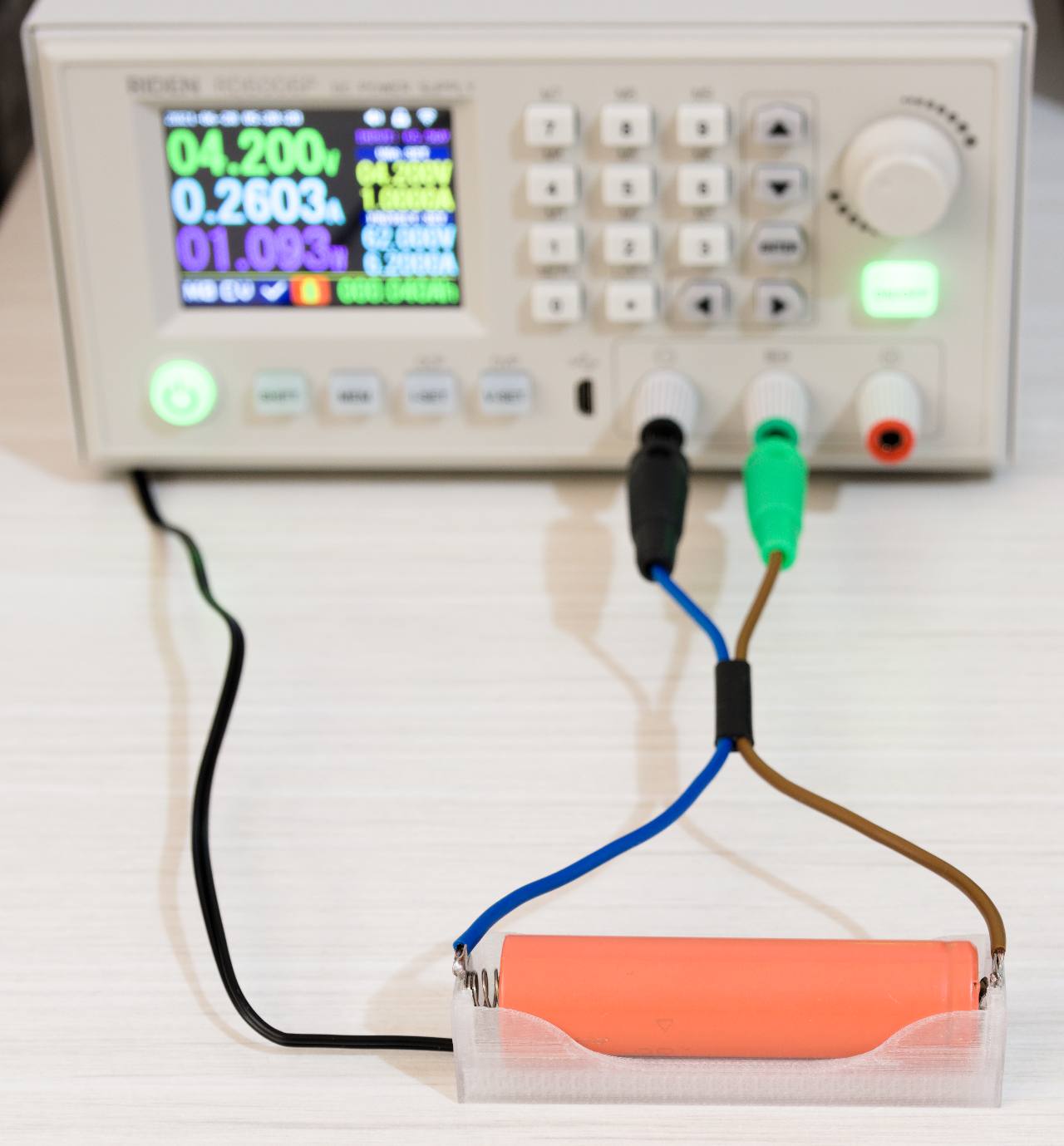

18650 battery charger

The RD6006P laboratory power supply can charge li-ion batteries, but you have to make your own battery holder. Ive made it so that the thermocouple merely sits in a trench underneath, and the battery needs to be pressed down against it.

18650 battery charger

Antenna connector cover

Just a one-off box to prevent cables from getting entangled upon adjusting the height of my desk.

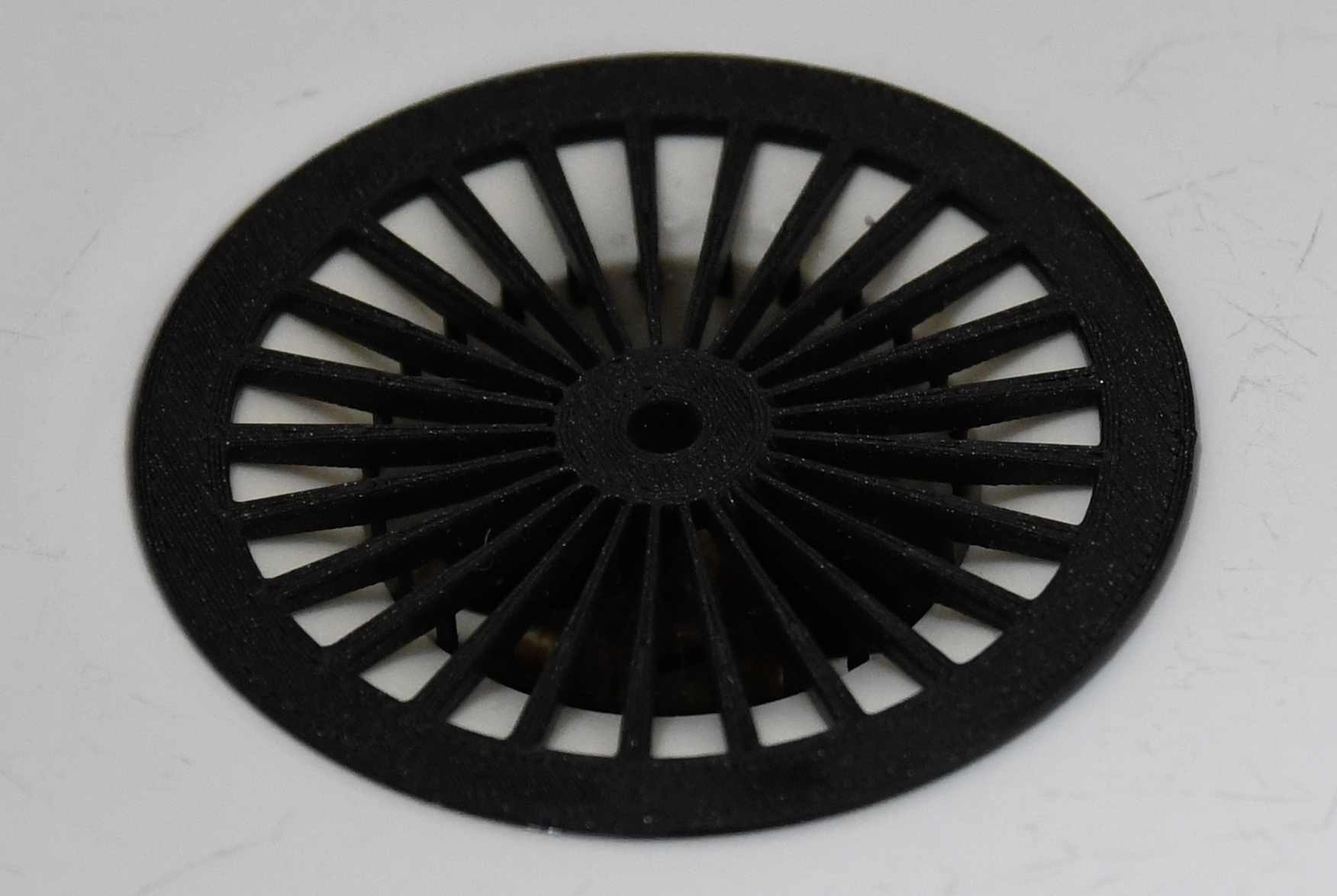

Bathtub strainer

The first thing Ive ever modelled for printing, hence the simple geometry. Prevents larger objects from falling in.

Bathtub strainer

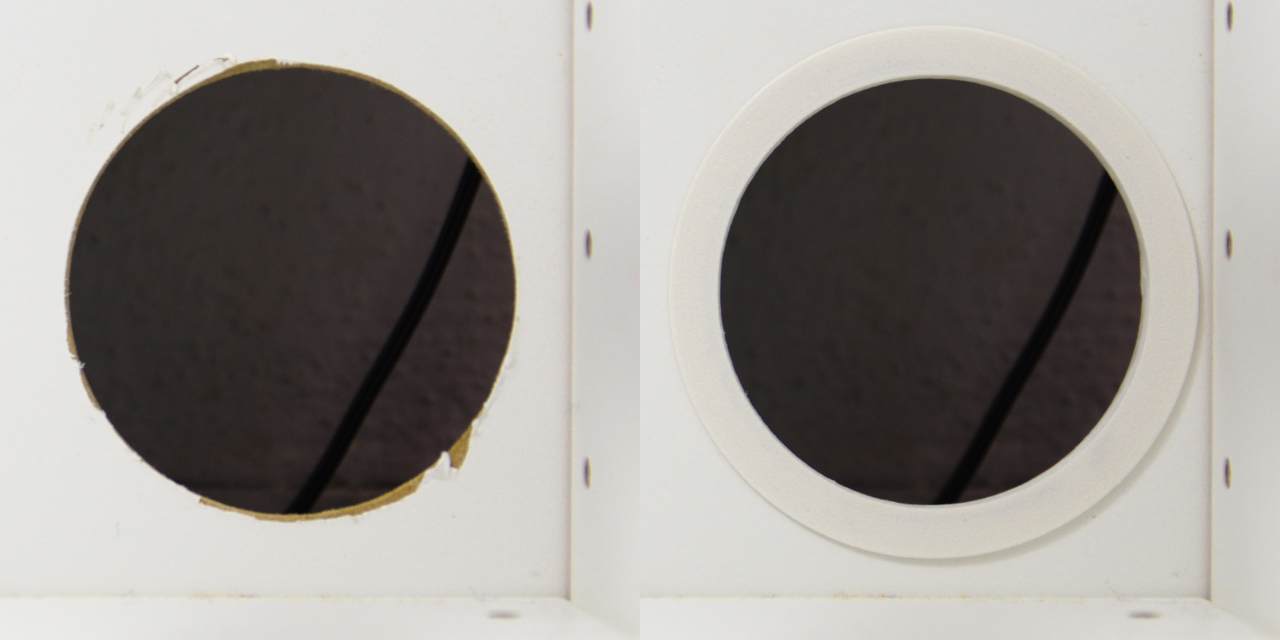

Cable bushing

A trivial model for the back of IKEA PLATSA, which is 3 mm thick. The lip is just wide enough to cover my mistakes.

Cable bushing

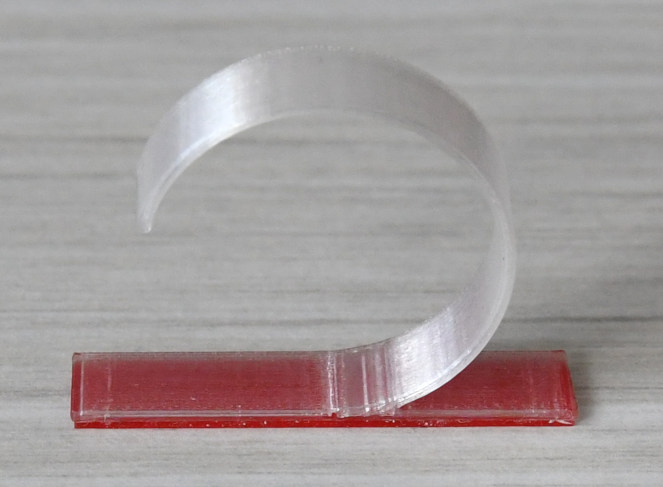

Cable hooks

To be glued to a desk using double-sided adhesive tape, which is the red thing in the photo below. Prone to delaminating under load when the printer is badly tuned.

Narrow cable hook

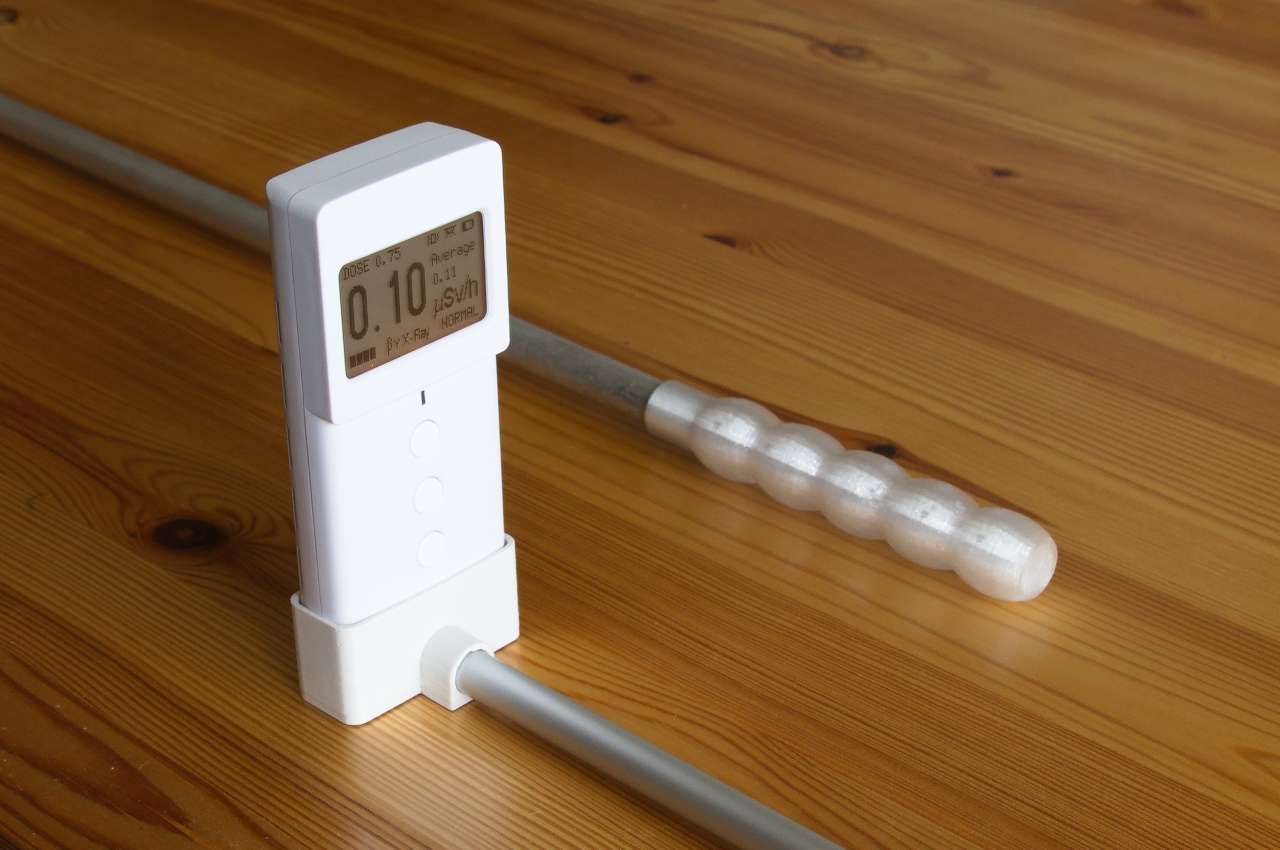

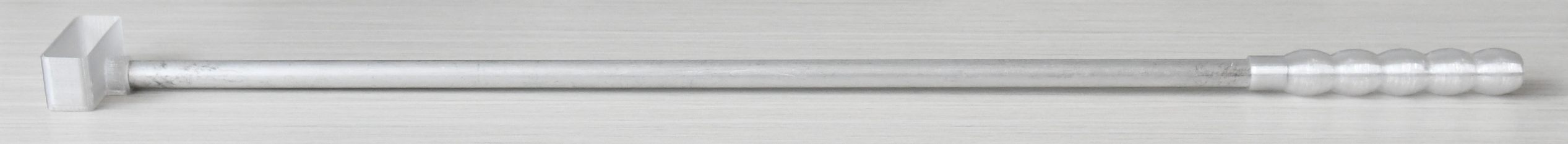

Geiger stick

For KB6011 and specific aluminium pipes. Use at least three perimeters for the handle, or it may break easily. The pipe needs to be inserted with considerable force.

Geiger stick PETG
Geiger stick PETG and ASA

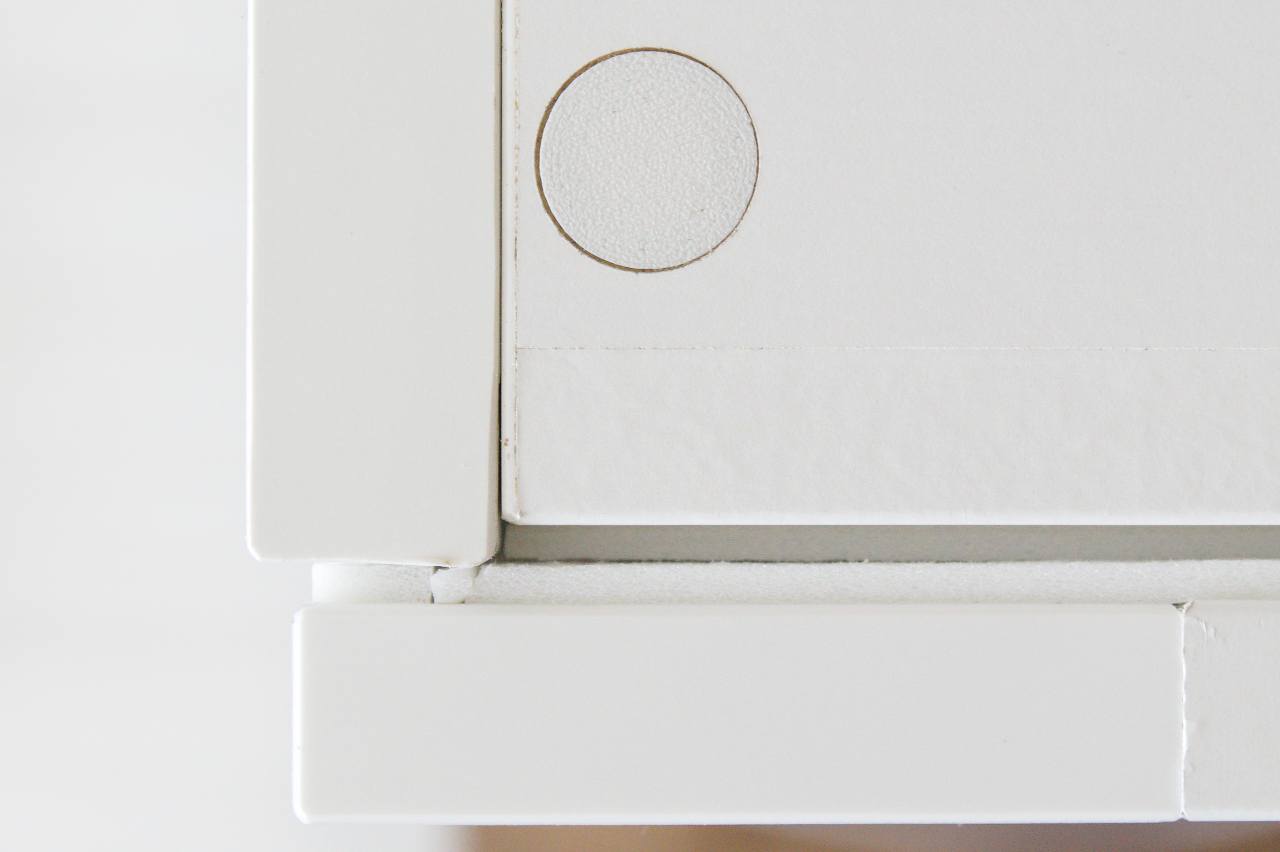

IKEA PLATSA screw plug

There are connecting holes at the top of frames from this system. Ive designed a simple plug to hide them, and to make the surface more or less level. Prusament ASA "Signal White" is an appropriate filament.

IKEA PLATSA screw plug

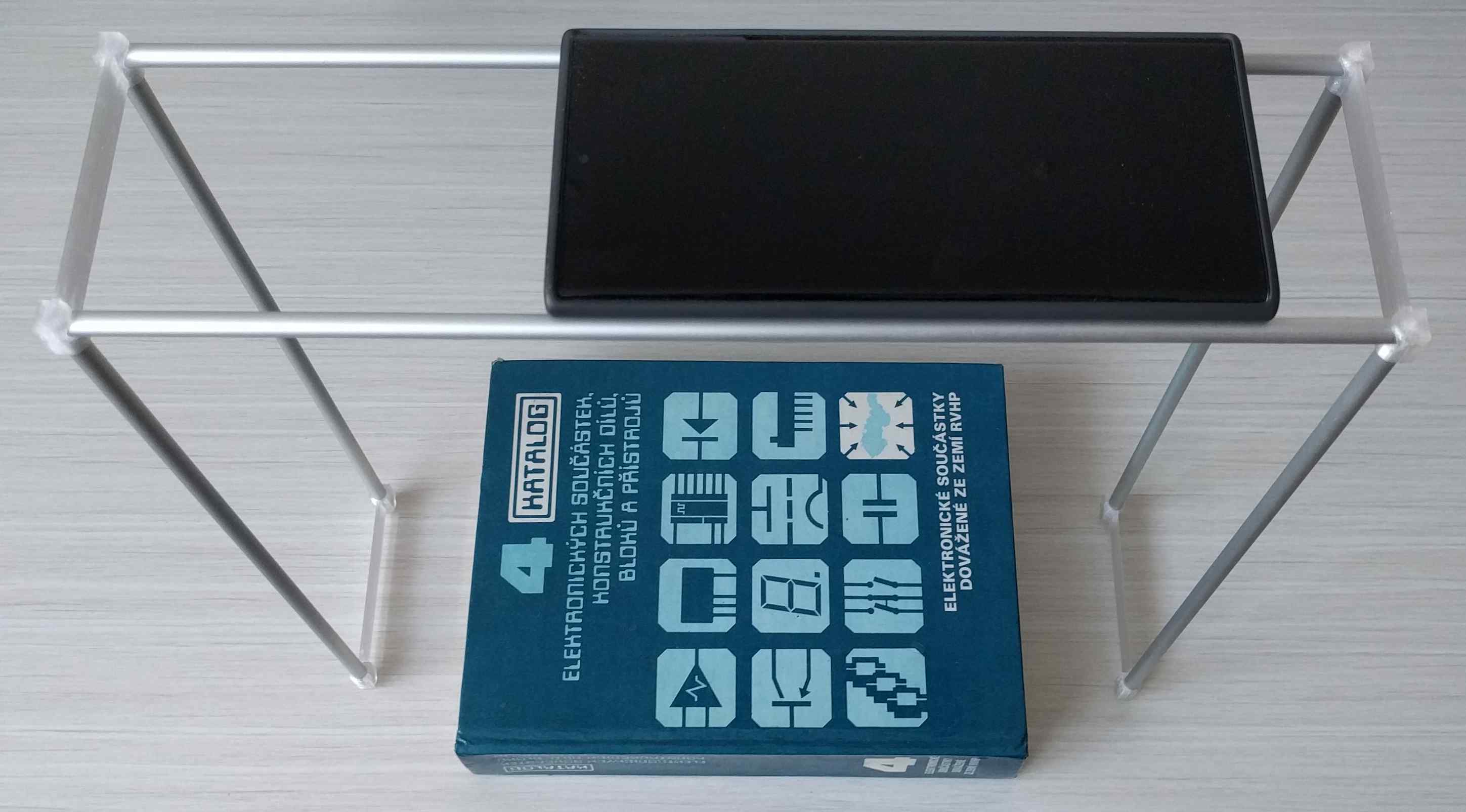

Book scanning stand

The pitch of 7 cm fits Samsung Galaxy Note 20 Ultra. Not as useful as expected, however the idea of using aluminium pipes has turned out to be a good one—theyre relatively cheap, and easy to work with. The sections are about 30 cm long, connected with four identical elbows. The bottom sits on 8x2.5 mm silicone pads.

Book scanning stand

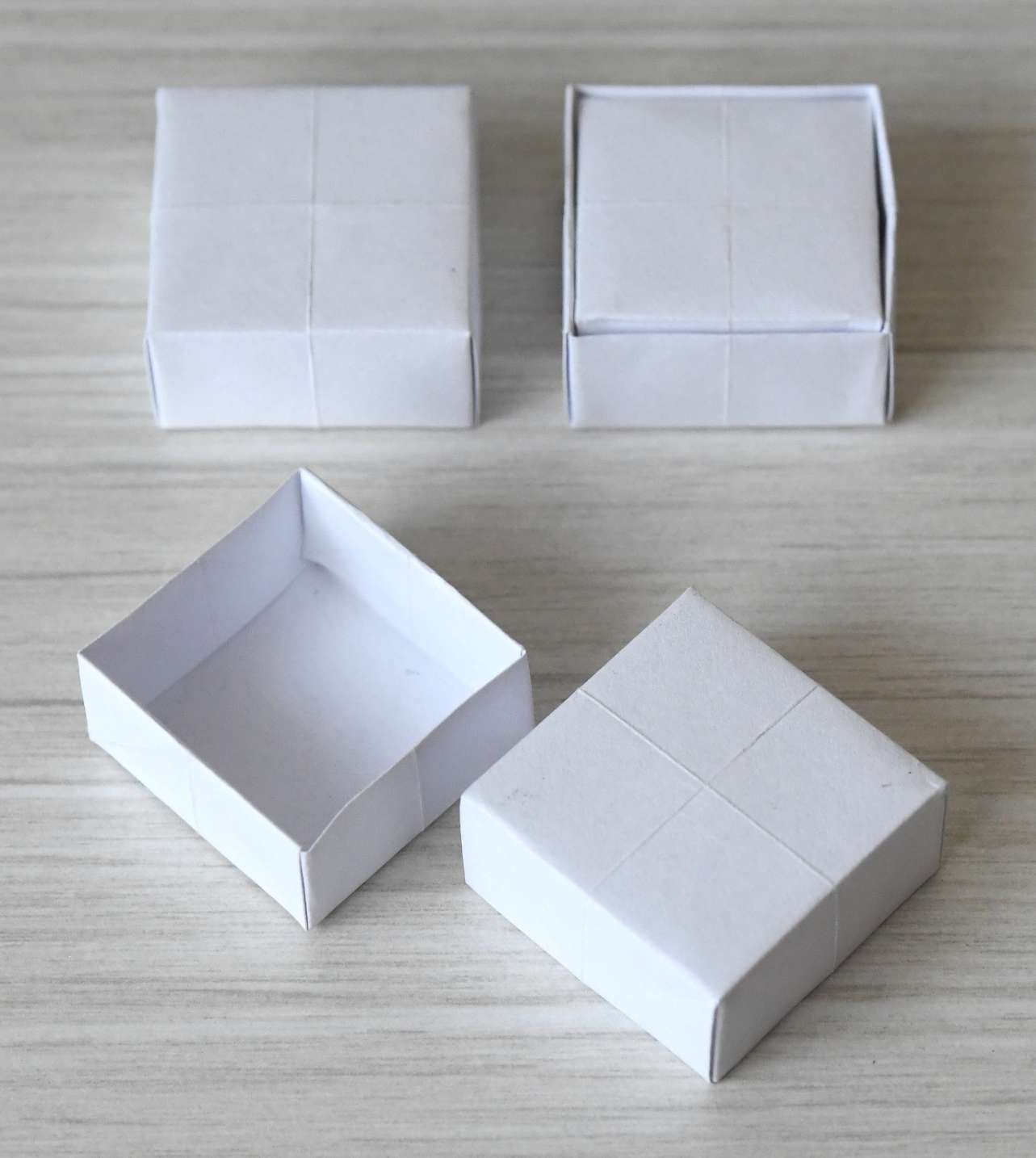

Paper boxes

These are actually 2D models for making closable little containers out of folded-up paper and a few drops of glue. It takes a lot of time to make these, so not recommended at all.

Paper boxes

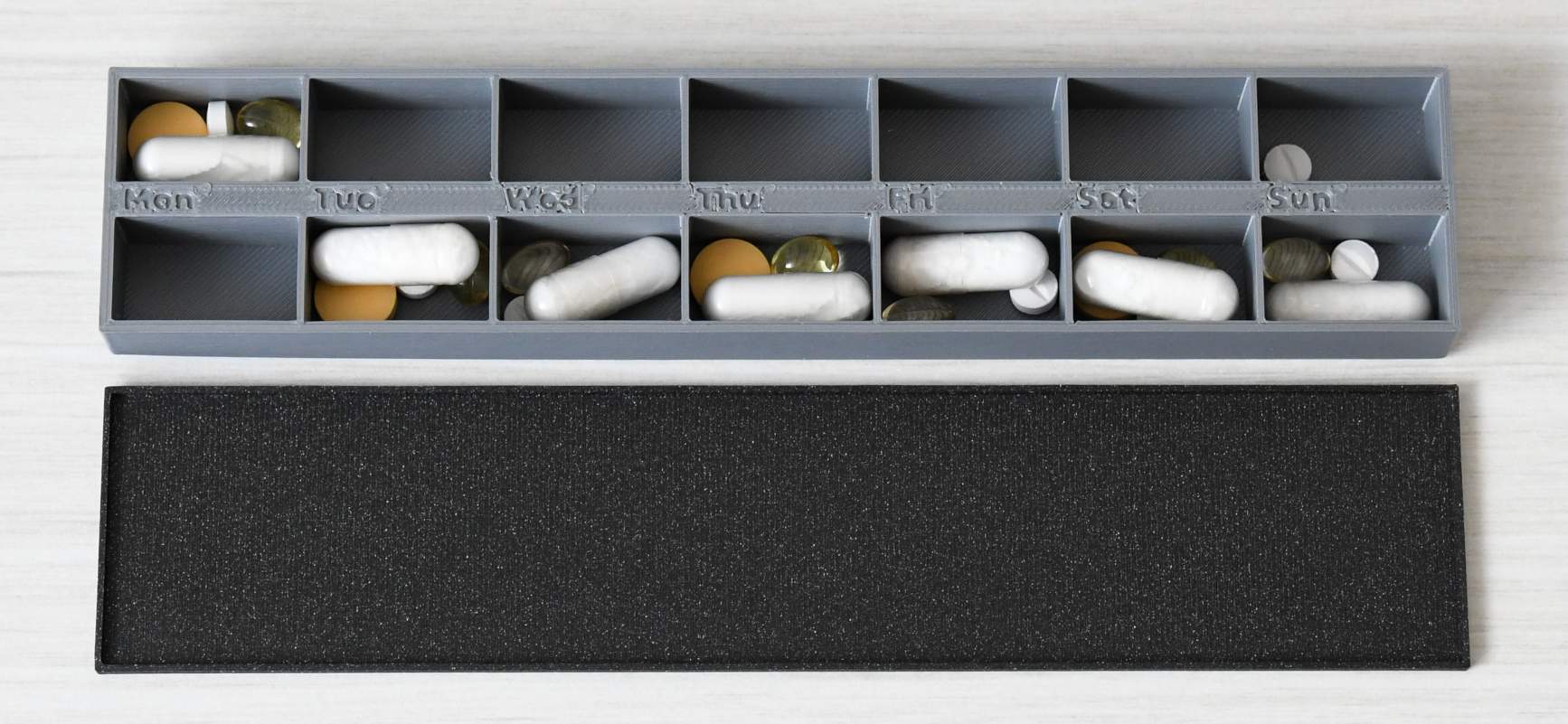

Pill container

This is not a particularly good design, and the tolerances are somehow off, so I failed to have it close after reprinting on a different machine. Large pills can be very difficult to extract.

Pill container

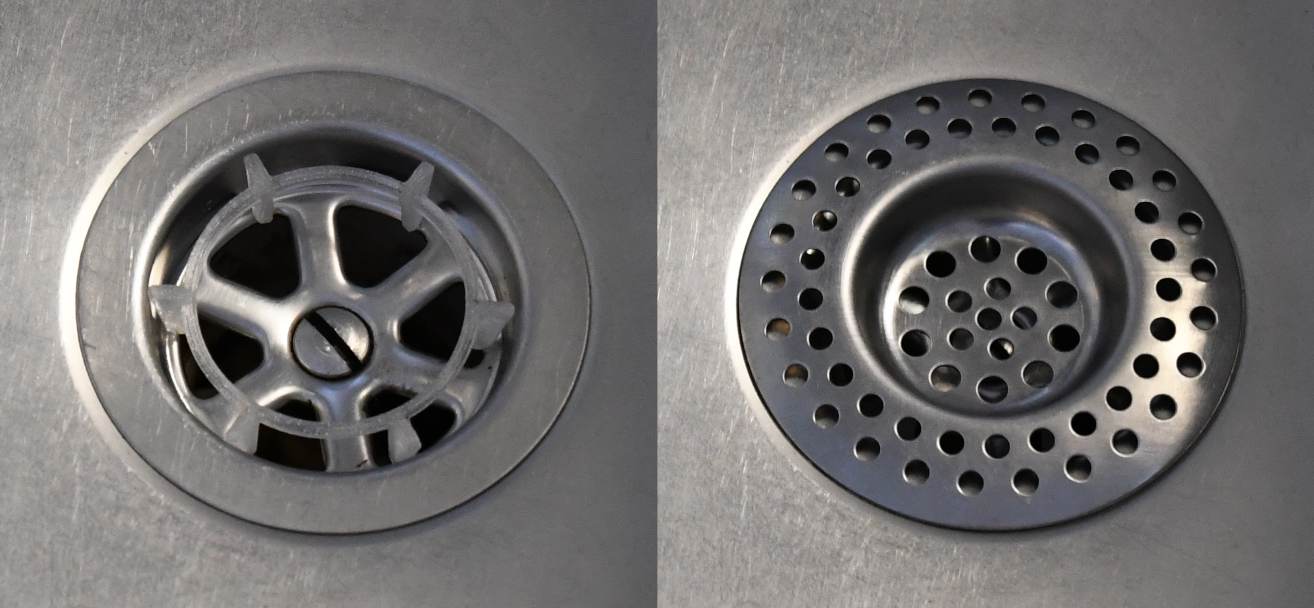

Strainer adapter

Fixating a pretty stainless steel strainer in my slightly incompatible sink drain. Absolutely perfect.

Strainer adapter

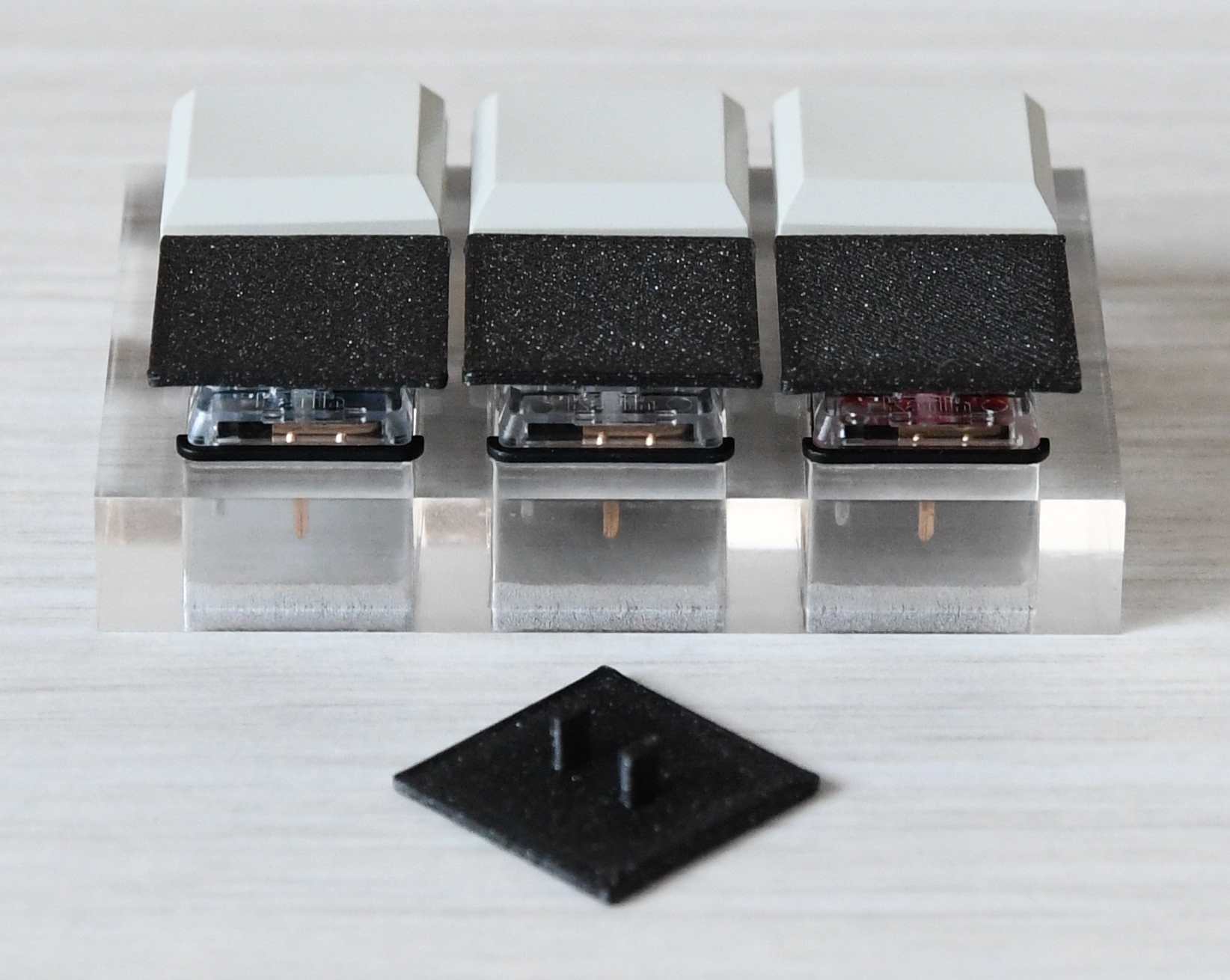

Trivial Kailh Choc keycap

Fast to print and perfectly functional in PLA, though obviously not very comfortable, nor nice to look at. Below shown next to similarly mediocre "Kailh original" white keycaps.

Trivial Kailh Choc keycap
